Cisco Meraki Presence Analytics (CMX) Integration

This guide will assist you in enabling your Cisco Meraki Access Points & Controller to communicate Presence/Proximity Data to the MyWiFi Dashboard.

Configuration Requirements: The configuration can only be applied on Cisco Meraki Access Points that are managed by a Meraki cloud controller Dashboard

Cisco Meraki - Validator

  1. Login in to your Cisco Meraki Cloud Controller Dashboard.
  2. Navigate to Network-wide >> General (Configuration).

  1. Scroll down to the Location and scanning section.
  2. Locate the Validator field and copy & save it.

Enable

  1. Login Into the MyWifi Control Panel with your credentials.
  2. Navigate to the "Devices" section.
  3. Click on the Edit Device button on your Cisco Meraki Device.
  4. Select the Presence tab.
  5. Click the Presence Analytics toggle to switch "ON".
  6. Paste the Meraki Validator key you saved earlier from the Cisco Meraki Dashboard into the Validator field that appears, and click the Update button.

  7. Copy, Paste the Endpoint & Secret you are provided, click the Update button.

Cisco Meraki - Post URL Setup

  1. Navigate back to your Cisco Meraki Dashboard.
  2. Return to Network-wide >> General >> Location and scanning

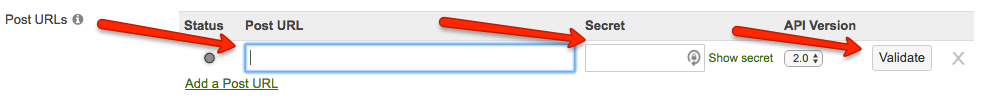

3. Click on Add a Post URL.

  1. Paste the Endpoint URL you saved earlier into your Post URL field.
  2. Paste the Secret key you saved earlier in your Secret field.
  3. Click the Validate button.

  1. You will receive a Validation - Confirmation Message.
  2. Click “Save”.

Congratulations!

Your Cisco Meraki Network Access Points are integrated to report Presence/Proximity Data to the MyWiFi Dashboard.
